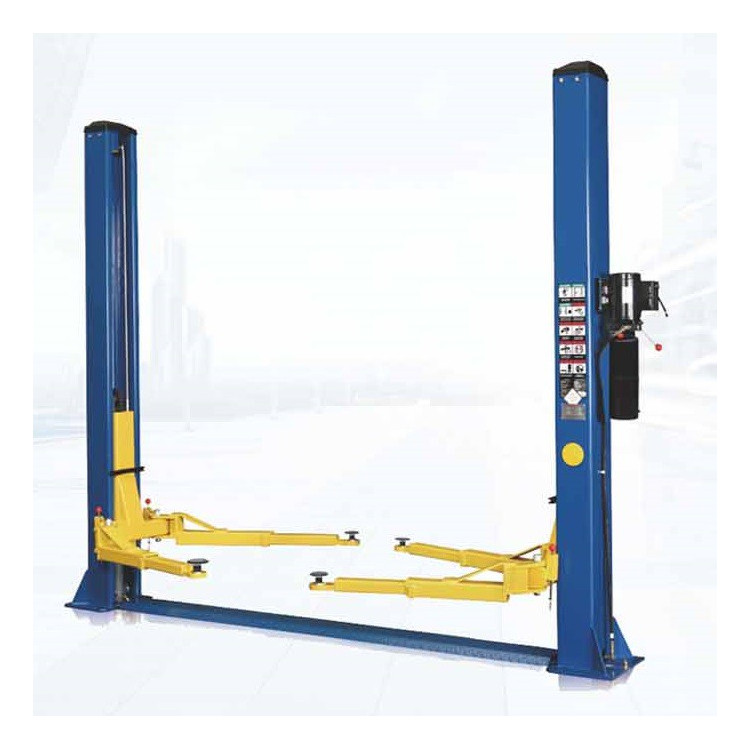

BTSL 4232 LIFT
* Very robust and balanced construction. * Low profile design. * Transportable. * Safety valve for the descent. * Safety valve in case of...
Lifting capacity: 4 T
Maximum lifting height: 1 900 mm
Minimum lifting height: 140 mm
Total height of the column: 2 826 mm
Width between columns: 2,557 mm
* Motor: 380V/50HZ/3PHZ.
12 MONTHS WARRANTY ON PARTS.
Security guarantees
100% secure CB payment, PayPal accepted
Delivery policy
Delivery TNT
Data sheet
- The cylinder stroke is 915 mm.
- Lifting process with hydraulic cylinder.
- Iron motor with steel tank.The power unit adopts CBK gear pump as standard, it is with axial compensation, high working pressure and internal structure of the use of advanced processing technology, high efficiency, pre-assembled so that the cleanliness of the pump reaches a higher level.
- Hoses are designed for 600 bar pressure, the inner layer with nylon, the second layer of high-strength steel wire, the outer coating layer is a rubber fabric, specialized for oil.
- Octagonal plate.
- Adjustment of the hole according to the insurance regulation, easy to repair and maintenance.
- 6 mm tube thickness for the arms.
- 16 mm thickness for the base plates.
